Folds and unfolds totally automatically

The mod. R30 is a scooter powered by an electric motor It can be folded or unfolded fully automatically: just press a button to fold to the size of a suitcase, just press another button to let it return to normal scooter,immediately ready to run.

When unfolded, it offers a comfortable seat and easy access;  it is easy to drive: just turn the main switch and regulate the speed  by turning the twist grip; can be driven also in narrow areas because its overall width is only 65 cm  (25.6 in); it is handy because its  turning radius is only 86 cm (33,9 in) and it can go in reverse; can be driven even on unpaved roads thanks to its large wheels (31 cm – 12,5 in diameter); it easily climbs up to 11% slope; it has a range of 20 km (12,4 miles)

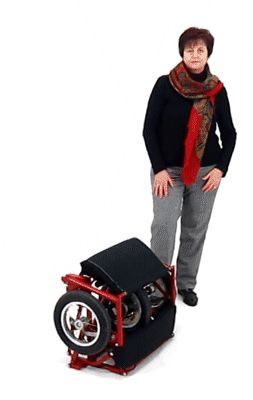

When folded, its size is only 65 x 37 x 48(h) cm (25,6x14,6x18,9 in) and therefore can be stored almost everywhere:  in the boot of cars, of motor homes, in the elevator, in a small corner at home, etc.
The weight (including the battery) is 24,6 kg (54,2 lb); without battery (which can be removed or fitted in one second) the weight  comes down to 21,8 kg  (48,0 lb)

The mod. R34 fits a Lithium battery very light  and reliable. Its use does not require any special care thanks to an electronic control device of charge and discharge.

Dimensions

• Unfolded, overall width: 65 cm (25,6 in)
• Folded: 65 x 37 x 48(h) cm (25,6x14,6x18,9 in)

Weight

• With battery: 24,6 kg (54,2 lb)
• Without battery: 21,8 kg  (48,0 lb)

Tyres

• 12 ½  x 2 ¼
• Tube type

Equipment

• Headlight
• Horn

Brakes

• Electro-magnetic brake on the motor
• Belt brake on the front wheel
• Parking brake

Performances

• Max Load : 100 kg.(220 lbs)
• Turning radius: 86 cm (33,8 in)
• Max speed:  6 km/h (4 mph)
• Range on flat road: 20 km (13 miles)
• Climbing capacity: 11%

Motor

• Voltage: 24V
• Max output: 250W

Battery

• Type: Lithium (LiFePO4)
• Voltage: 24V
• Capacity: 9Ah
• Charger: 2 A
• Weight: 2,8 kg (6,2 lb)
